CRIUS NEO-GPS & MAG V2 NEO-7M GPS & Compass Module for APM Pixhawk PX4 Flight FC

  • item#: 49165
  • Retail price: US$30.99
  • Price: 30.99

  • Start from: 1 Unit(s)
  • Weight: 0.2 Kg(s)
  • This item is:

  • US$30.99 + Shipping Cost
    Quantity: Unit(s)


    CRIUS NEO-GPS & MAG V2 NEO-7M GPS & Compass Module for APM Pixhawk PX4 Flight FC

    100% Brand NewThis is the high performance GPS module with HMC5883L compass. It can be mounted away from sources of interference. It features active circuitry for the ceramic patch antenna, rechargeable backup Capacitors for warm starts.

    ·u-blox NEO-7M GPS module
    ·10Hz update rate
    ·Build in 25 x 25 x 4mm ceramic patch antenna
    ·LNA and SAW chip
    ·3.3V LDO low noise regulator
    ·UART (TTL) port with EMI protection
    ·3V Rechargeable Backup Capacitors
    ·Fix indicator LEDs
    ·Reverse polarity protection for input power

    Default parameter
    ·NMEA protocol
    ·Baud rate : 9600
    ·Nav rate : 1Hz
    ·TIMEPULSE (fix LED) rate : 1Hz

    ·Dimension: 50 x 50 x 13mm
    ·Weight: 29.3g (include cable)

    Package content
    1 x NEO-GPS & MAG V2
    1 x 1.25-5P / 1.25-4P cable 300mm

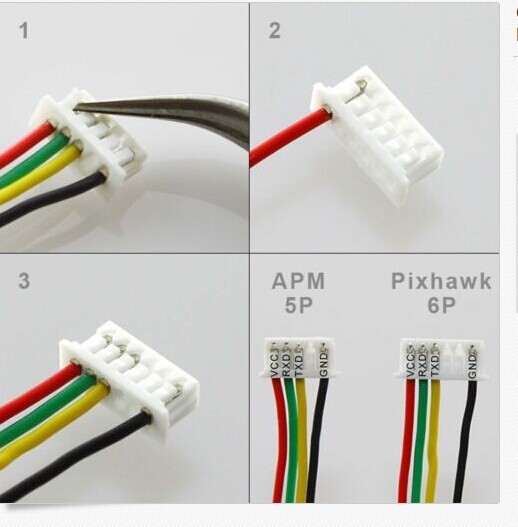

    2 x 6Pin plugThe GPS used for APM/Pixhawk and include cable for APM. If it used for Pixhawk, Please change the plug shell 5-Position to 6-Position like the picture:
    Please note: NEO-7M build in ROM, not FLASH, also does not support external EEPROM memory, this GPS only applies to the   automatically GPS parameters configured flight control, such as APM/PIXHAWK, it cannot be used for non't automatically GPS parameters configured flight control, such as MWC flight control.
